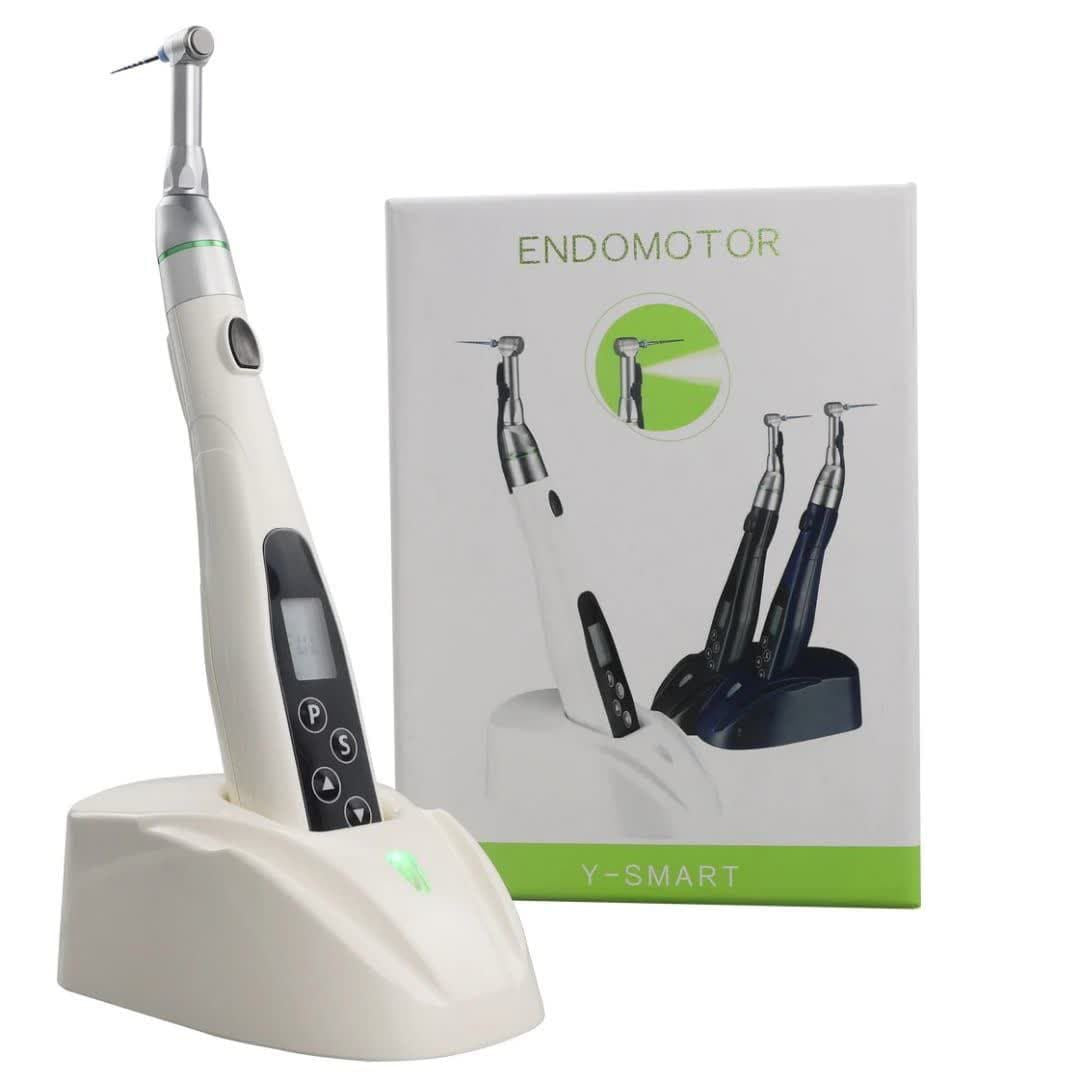

Endo Motor

Device Overview
The Endomotor Y Smart is a cordless, battery-powered endodontic motor designed for mechanical root canal preparation with NiTi rotary files. It supports adjustable speed and torque, multiple working modes, and programmable memory for different endodontic techniques.

⸻

Core Specifications
• Motor Type: Brushless DC endodontic motor
• Power Source: Rechargeable lithium-polymer battery (large capacity)
• Speed Range: Approximately 120 – 500 rpm
• Torque Range: 0.6 – 4.0 N·cm
• Contra-angle Gear Ratio: 16:1
• Display: LCD screen for speed and torque adjustments
• Battery Indicator: Visual and/or audible low-power alert
• Contra-angle Sterilization: Autoclavable up to standard autoclave temperatures
• Compatibility: Works with standard NiTi rotary files

⸻

Operating Modes

The unit typically supports multiple motion modes useful for different file systems and preparation techniques:
1. Continuous Rotation – Standard rotary motion for most NiTi file systems.
2. Reciprocation (Left-Right) – Alternating rotation to reduce instrument stress.
3. Forward – Unidirectional rotation in the cutting direction.
4. Reverse – Unidirectional rotation in the reverse direction.
5. Auto Reverse on Resistance – Motor reverses when torque exceeds preset limit.
6. Forward on Resistance – Motor continues forward motion when encountering resistance.
**Have a built-in LED light on the handpiece head
